LCS880/LCS881 Hand Held Siren & Lighting Controller

Features

• Wail, Yelp, Air Horn, Phaser, Manual, Two Tone, PA, and Radio Repeat
• Seven Lighting Control Functions Including 4 Position Pursuit Slider
• Four Position Pursuit Slider Switch with LED Indicators
• Ergonomic Design with Integrated public address microphone
• Dual Color Backlighting on Keypad (Red & Green)
• Hand Piece Cradle for Mounting or Velcro for Concealed Mounting
• Park Kill & Auxiliary Input (with Positive & Negative Switching)
• LED speaker diagnostics
• Self-resetting circuit protection against speaker shorts
• High and Low voltage shutdown protection
• 30 standard function replaceable labels
• Truck mount amplifier
• Drives one or two 100 Watt speakers
• Traffic Director Compatibility

Specifications

• Dimensions: Control Head: 6"H X 2 1/2"W X 1 1/2"D
• Amplifier: 2 1/2"H X 7"W X 7 2/8"D (plus 3/4" flange on each side)
• Weight: LCS880: 8.5 lbs.
• Output: 100 or 200 Watts (1 or 2 speakers)
• Amp. Draw: 8 Amps (per speaker)

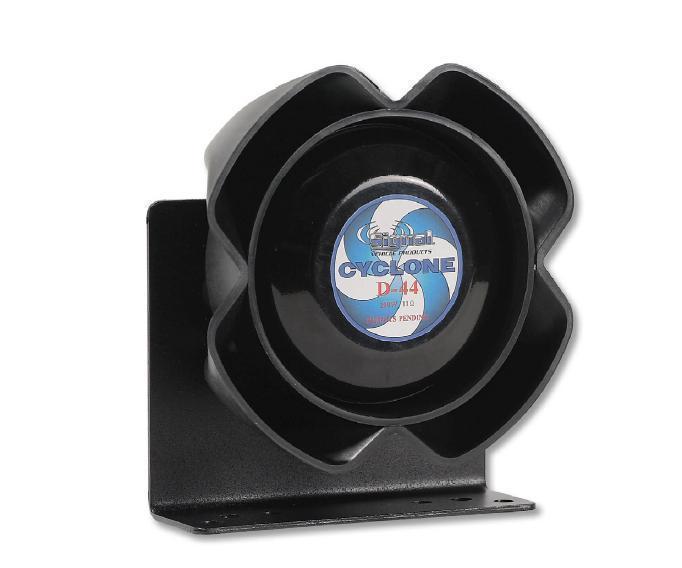

D44 Slim Cyclone Speaker

• Patent Pending Cyclonic Expansion chambers
• Ultra Compact Design – Less than 3” deep
• Rugged glass filled nylon housing – will not rust!
• User Replaceable rear facing driver
• Includes Universal L-Bracket
• Output: 100 Watts Impedance: 11 ohm
• Dimensions: 6.6” x 6.6” x 2.9”
• Exceeds Acoustical Requirements: SAEJ1859 & Title 13 Class A

Approvals

• Exceeds Acoustical Requirements: SAEJ1859 & Title 13 Class A
