Features

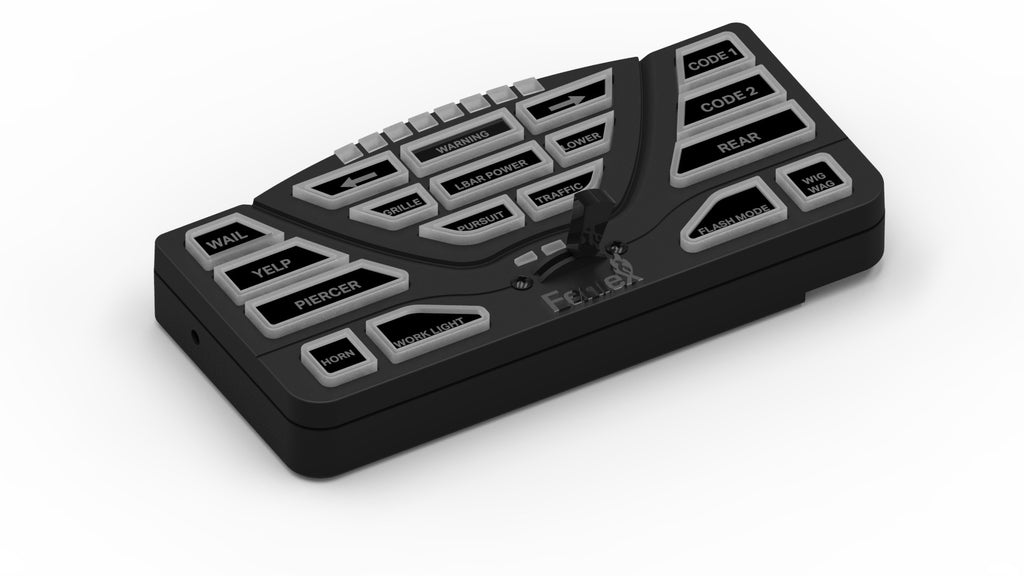

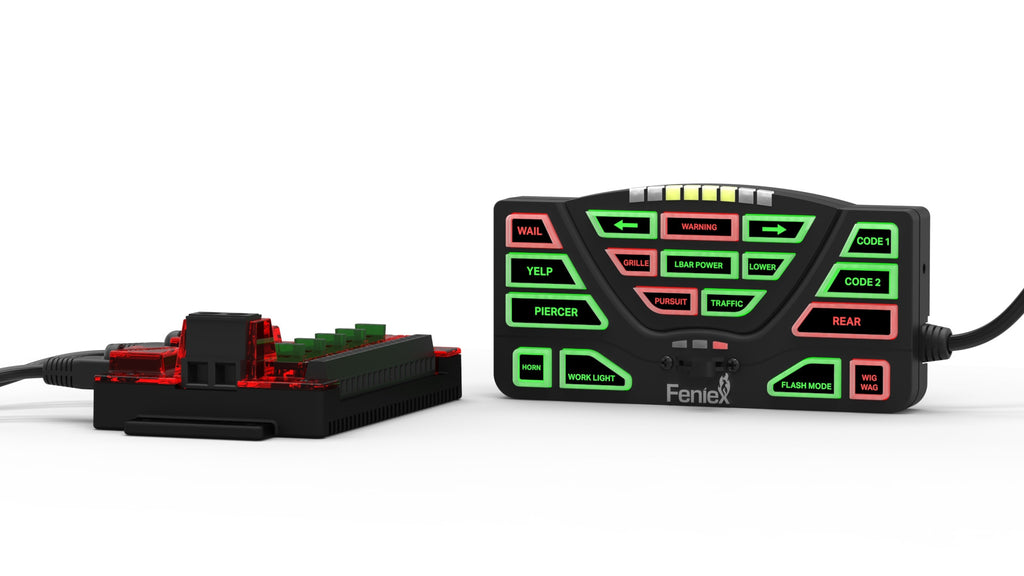

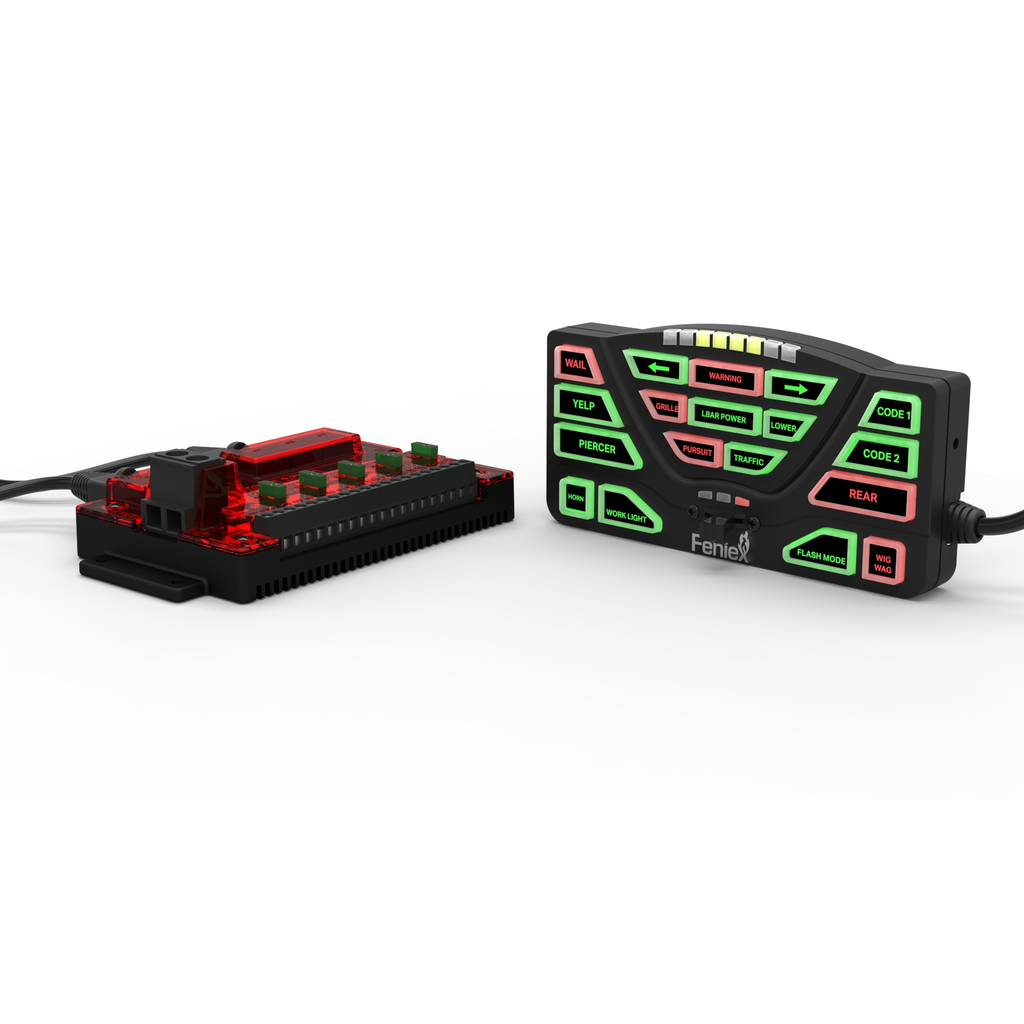

• All-In-One Controller
• 18 LED Dual Color Back-Lit Push-Feel Buttons
• 4 Position Programmable Slide Switch

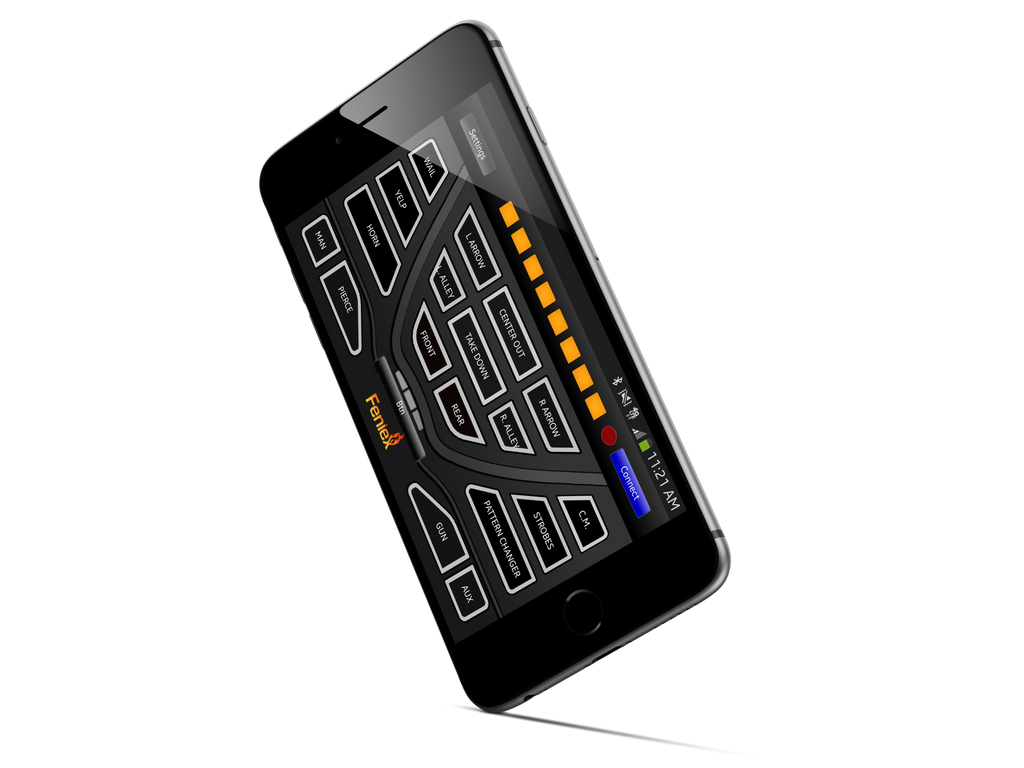

• Bluetooth Add-On Allows for Wireless Phone or Tablet Control
• 32 programmable outputs (17 channels rated to 10 Amps each)
• Rugged Solid State Relays with On/Off, Momentary, and Timer Functions
• Integrated 2 channel WigWag/LED Flasher (3 Amps)
• USB Port and FREE PC Software for Easy Programming
• Compatible with all other lighting and vehicle equipment
• Includes 50 Standard Function Labels Per Button

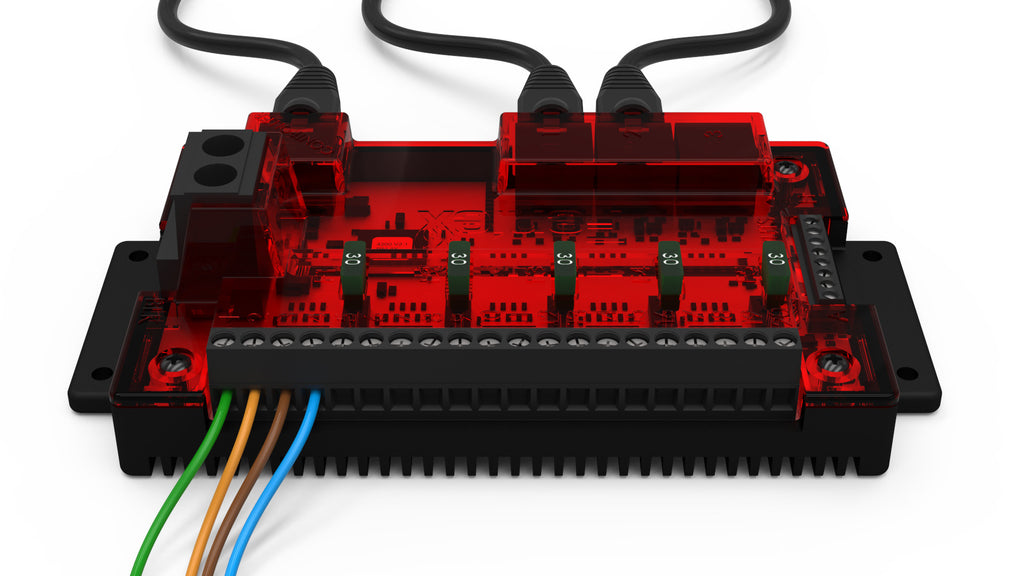

• Includes Wire Connectors for Easy Installation

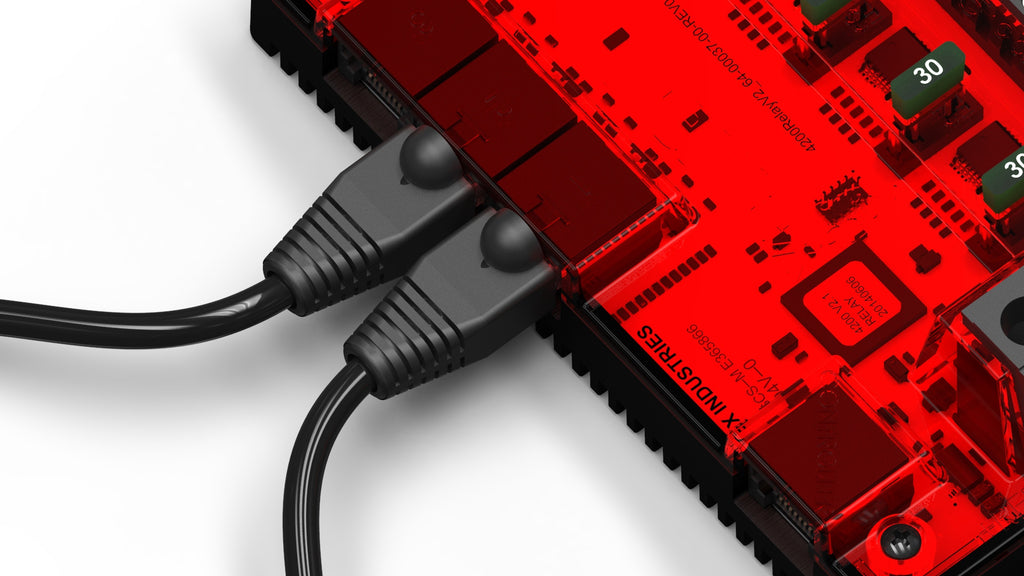

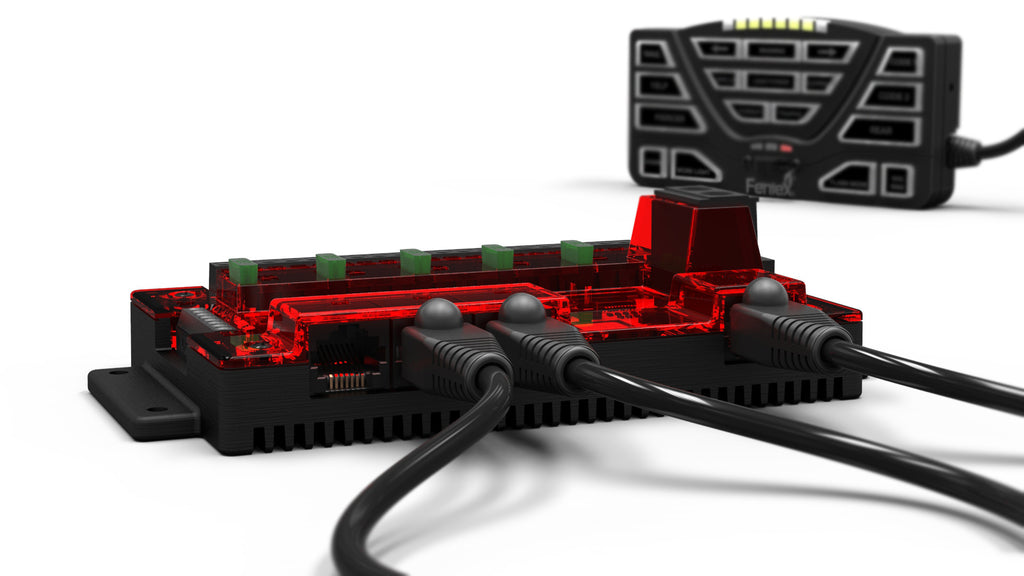

• Includes 15 feet of RJ-45 Cable to Link Controller to Power Supply
• Includes Aluminum U-Bracket for Dash Mounting
• Available with 100 or 200 Watt Siren (200 Watt Shipping 6/1/2015)
• 200 Watt Siren Features Dual Tone with Delayed Tone Offset (Delayed Start)
• Siren Tones: Wail, Yelp, Fast Yelp, Phaser, Hi-Lo, Manual Siren, Air Horn
• Integrated Park Kill, Horn Ring Activation, and Radio Rebroadcast

Specifications

• 5 Year Warranty
• Controller: 6.8" L x 3.5" W x 1.3" H

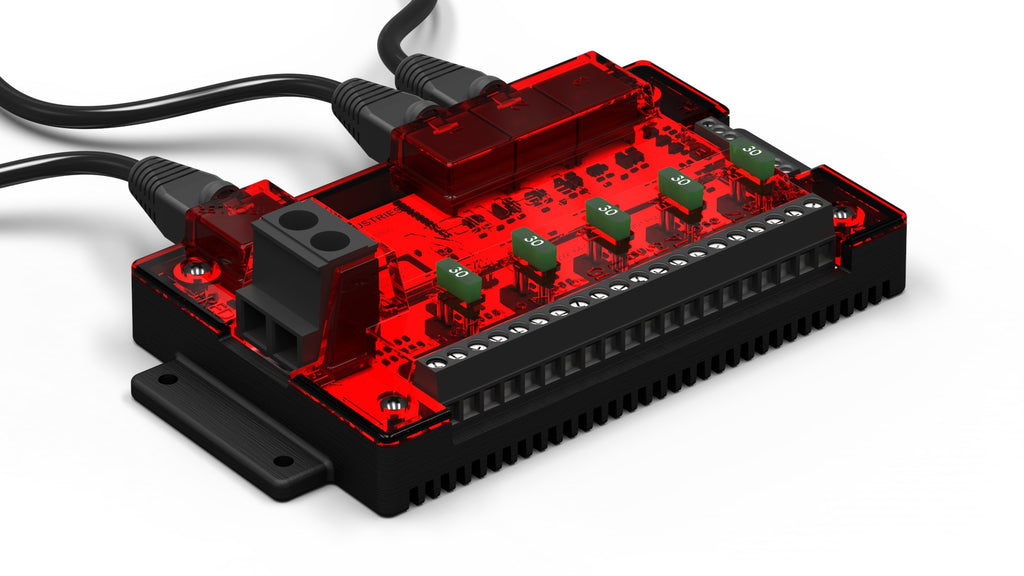

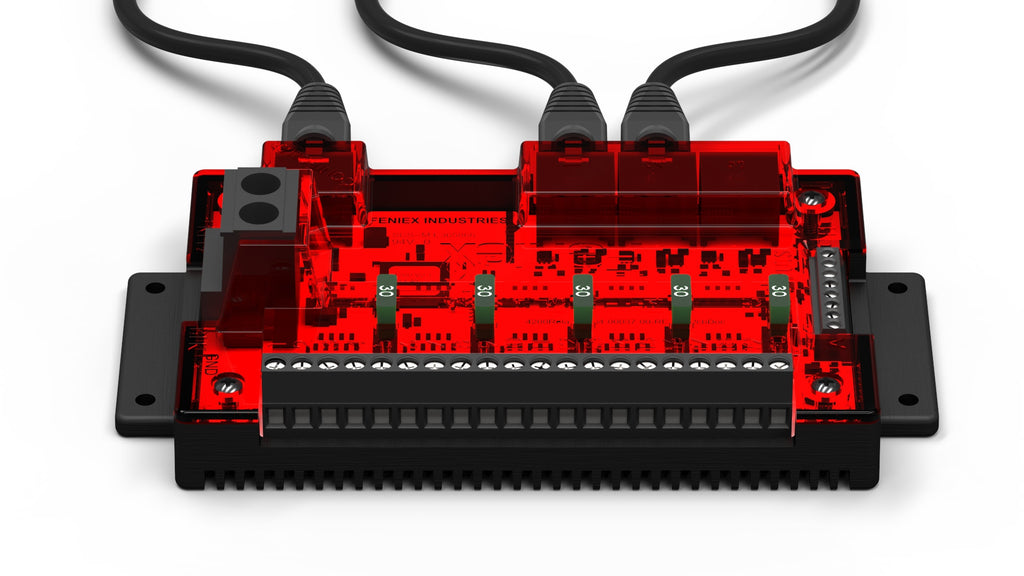

• Power Supply: 6" L x 4" W x 1.5" H
• Input Voltage: 11-16 V DC
• 17 10-Amps (+) Outputs
• 1 3-Amps (-) Output
• 2 4-Output Groups (20 Amps)
• 1 4-Output Continuous Current (30 Amps)
• Integrated 2 Channel WigWag/LED Flasher (3 Amps)
• Frequency: 550-1725 Hz
• Max Amp Draw: 16 Amps
• Stand By Current: <30mA

Triton 100 Watt Slim Speaker

• 100 Watt Output

Approvals

• Exceeds Acoustical Requirements: SAEJ1859
