Features

• Extremely Low Profile
• M-Tech® Plus LED technology provides superior warning light
• 360° LED light output
• Durable polycarbonate, injection molded domes are fully gasketed to protect against moisture
• Conformal coated circuitry protects against shock and vibration
• Rugged one-piece, extruded, anodized aluminum base
• Permanent mount: 20 Customer selectable flash patterns via external pattern select wire or jumper Synchronization Capability 24” wire leads

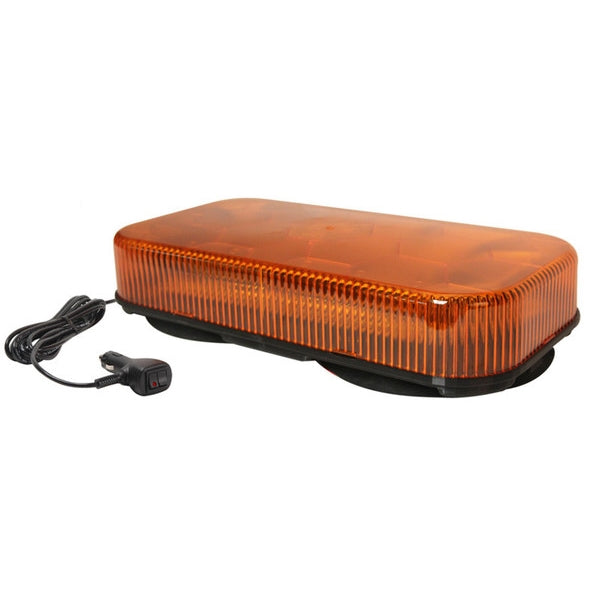

• Magnetic mount: 20 Customer selectable flash patterns via internal pattern select jumper 12’ cigarette plug adapter with lighted on/off switch

Specifications

• Dimensions: 3” H x 16-1/2” L x 8-3/8” D
• Voltage: 12V – 24V DC
• Amp Draw: 2.3 Amps (max)
• Approvals: SAE J845 Class I (Amber, White and Blue), Class II (Red, Amber w/ Clear Dome)

Dome Color Matches Output Color Unless Otherwise Specified

Patterns

• Slow Warn
• Alternating Flicker
• Alternating Quadflash w/ Post Pop
• Alternating PSU Flicker
• Alternating PSU Random
• Alternating Slow Doubleflash
• Alternating Quadflash
• Alternating Fast Doubleflash
• Alternating Tripleflash
• Alternating Variable (Speed Up-Slow Down)
• Alt. Triple, Alt. Double, Alt. Quint, Flicker
• Alternating Qunitflash
• Swing
• Alt. Doubleflash, Alt. Flicker
• Alt. Quad, Alt. Flicker, Alt. Double, Flicker
• Clockwise Rotating Flash
• Counter Clockwise Rotating Flash
• Simultaneous Quad Flash w/ Post Pop (Phase 1)
• Simultaneous Quad Flash w/ Post Pop (Phase 2)
• Cycle All

Magnetic products are not recommended for use on vehicles in motion due to the risk of detachment by wind, vehicle speed, or other cause. 911Lights assumes no liability for property damage, product loss, or personal injury resulting from use contrary to this recommendation.
